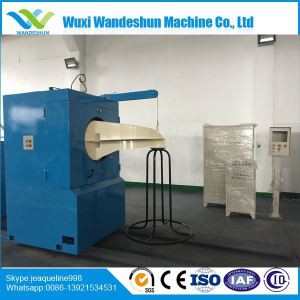

Inverted Automatic Drawing Machine

Introduction

An Inverted Automatic Drawing Machine, also known as a vertical plotter or wall plotter, is a unique device used for creating large-scale drawings or artwork. Unlike traditional drawing machines that operate on a horizontal surface, an inverted automatic drawing machine is mounted vertically on a wall or other vertical surface.

Main Technical Parameters
Items	Unit	Model
Diameter of capstan	mm	550- 1400
Maximum diameter of inlet wire	mm	40
Intensity of material	Mpa	≤1200
Compression rate	%	15-30
Maximum drawing speed	m/s	2.5
Motor power	kw	11-110



The product is developed for the non-slip drawing of medium & low carbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters.It is especially suitable for the drawing of medium & low carbon steel wire in standard parts and supermarket shelf industry.The maximum inlet diameter can reach 30mm and diameter of capstan is 550-1330mm.

Transmission part of the system can apply cycloidal speed reducer,harden gear surface reducer orrockerreducer.Its electric system applies international famous brand frequency converter with stable

performanc. Features of the equipment

1.Inverted Wire Drawing Machine is applicable for continous production process of coil with heavy charging box.

2.Easy operation and reliable control enables safe production and convenient maintenance.

3.Application of 3-phase AC variable-frequency speed adjustment realizes smooth stepless speed regulation and saves more than 30% electric power.

Full automatic feeding+ automatic cutting+ inverted drawing machine production line is the special equipment for the market by our company's digestion and absorption of foreign advanced technology and design of heavy wire, large diameter drawing, simple and reliable operation, high safety. Unique high performance, humanization design is the preferred equipment drawing of low carbon wire rod, widely used in metal products, raw silk, bolt of large diameter wire drawing industry, deeply loved by industry experts and entrepreneurs who have farsightedness.



Characteristic instruction

1, Through the use of programmable frequency conversion control in the wire feeding process, the wire drawing machine's stability is greatly increased. Additionally, many safety protection devices are designed for production safety equipment, resulting in more dependable, safe, and stable operation. The wire feeding procedure requires no human intervention and is entirely automated.

2,The cutting mechanism of control is the same with the wire feeding machine, driven by hydraulic control, the operation is convenient and flexible, automatic cutting process, the cutting effect is excellent..

3,The control of inverted drawing machine is safe operation mode, stop immediately for emergency shutdown, tangled lines, break and electrical faults, the brake system is safe and reliable, the operation is convenient and flexible, humanized design makes the whole line operation more convenient and reliable, the entire line of the main electrical components, hydraulic components are equipped with international famous brand products.

Automatic wire feeding part			Automatic cutting part			The inverted drawing part
name	unit	parameter	name	unit	parameter	name	unit	parameter
The active roller diameter	mm	Φ250	Cutting mode		Built-in rotary cutting	Drum diameter	mm	Φ550－1500
speed	m/min	≤50	Cutting process		automatic	The largest diameter line	mm	Φ38
Motor power	Kw	5.5－11	Motor power	Kw	0.75－1.1	Inline strength	Mpa	≤1200
Feeding style		Single action, linkage	The mobile form		Hydraulic, hand, automatic control	compression ratio	%	15－30
Press wheel form		Adjustable hydraulic control	gearbox		Cycloidal needle wheel	The max wire drawing speed	m/s	0.5－2.5
gearbox		Double gear drive	Cutting diameter	mm	Φ12－38	Motor power	Kw	22－110
Wire diameter	mm	Φ12-38	Cutting material strength	Mpa	≤1000	Control mode		AC variable frequency speed regulation
Material strength	Mpa	≤1000	Control mode		PLCcontrol	Reduction box		Hardened face gear drive
Control mode		PLC control



Should you're in need of quality and stable inverted automatic drawing machine made in China, welcome to buy the machine from our factory. We are one of the leading such manufacturers and suppliers in China, equipped with advanced equipment and technology. Welcome to contact us.
