Nail Making Machine

Your Professional Nail Making Machine Manufacturer!



Wuxi Wandeshun Machine Co.,Ltd. is a leading manufacturer specializing in the research, development, design, and production of wire drawing machines. Our product portfolio encompasses five major series with over 30 distinct models. Our products include Wire Nail Making Machine For Wooden, Z94 New Generation High Speed Low Noise Wire Nail Making Machine, Wire Nail Making Machine, etc.



Why Choose Us

Professional team

We have a professional team consisting of professional service personnel, experienced technicians and excellent production management personnel.

Customized service

We are able to design and manufacture wire drawing machines and their different combination configurations that meet various special requirements according to customer needs.

Quality control

All our products undergo strict quality control procedures to ensure that the product quality meets the highest standards.

Advanced equipment

We are equipped with advanced production equipment to ensure that efficiency, precision and high quality standards can be achieved in every link.

Categories
Latest Products
Contact Us
Z94 New Generation High Speed Low Noise Wire Nail Making Machine



Custom Nail Making Machine

Wuxi Wandeshun Machine Co.,Ltd. provides professional nail making machine customization solutions to meet any of your needs, customizable options:
● Production Capacity
Number of Nails per Minute: Determine the nail machine according to your production needs.
We have highly automated nail making machines with a variety of production speeds to meet your different nail production requirements.
● Specifications and Types of Nails
Different types of nails require different types of machines. Determine the nail machine according to your production needs.
● Motor Power
Determine according to your production needs.
● Dimensions
Customizable.
● Optional Accessories
Additional Tool Set (Clamping Die Set, Cutting Tool Set and Head Tube Die Set).



Nail Making Machine Specification

Technical data

Units

Z94-6.5C

Z94-5.5C

Z94-4.5C

Z94-3.4C

Z94-2.8C

Z94-1.6C

Dia of nail max

Mm

6.5

5.5

4.5

3.1

2.8

1.6

Dia of nail min

Mm

3.4

3.1

2.8

1.8

1.2

0.9

Length of nail max

Mm

203

152

100

75

50

25

Length of nail min

Mm

100

70

50

30

16

9

Designed capacity

Pcs/min

160-200

180-220

280

300

320

460

Motor power

Kw

11

5.5

4

3

2.2

1.5

Weight(approx)

Kg

5500

2600

2000

1800

1450

1200

Overall dimensions

Mm

3250x1850
x1800

2600x1700
x1700

2200x1600
x1650

2000x1400
x1400

1700x1300
x1400

1500x1300
x1200

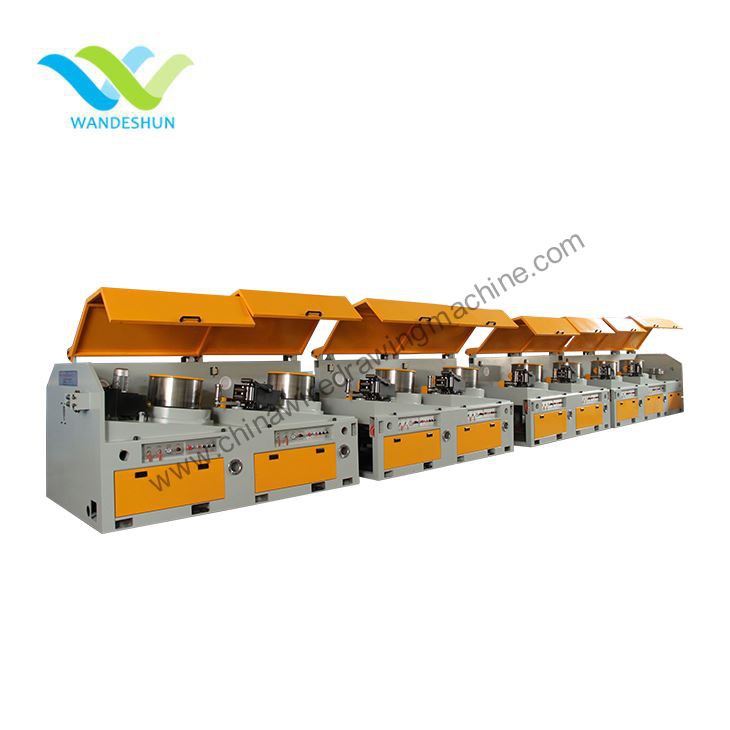

Wire Drawing Machines

Types of Nail Making Machines





Automatic nail making machines

These machines are fully automated and are capable of producing a high volume of nails with minimal supervision. They are ideal for large-scale industrial production.

Wire nail making machines

Designed specifically for wire nails, these machines cater to industries that need nails for construction and carpentry.

Umbrella head nail making machines

These machines produce nails with a broader head, often used in roofing and sheet metal applications.

High-speed nail making machines

Built for speed and precision, these machines are suitable for manufacturers aiming to maximize output without compromising quality.

Custom nail making machines

These are tailored to produce specialized nails, such as twisted or grooved nails, used in specific applications like flooring or masonry.





Nail Making Machine Features

● Elegant appearance,Reasonable structure, Stable performance, Security and reliability, Durability in use, Easy maintenance, High efficiency.


● The main parts like all the shafts, cams and gears are made of quality steels.


● The feeding system is installed with control handles, which makes it easier to feed wires or stop feeding wires at any time during machine running.


● An friction device is assembled between crank shafts and flywheels to provide protection when a machine break down or overload.


● Full automation. Once launched, it can make nails continuously.

High Speed Low Carbon Straight Line Wire Drawing Machines




Application of Nail Making Machine

01/

Construction companies
Use a nail making machine to make nails in multiple sizes and types for different construction projects. In order to meet demand, the machine's fast production speed will be useful.

02/

Furniture manufacturers
Use a nail making machine to produce nails, used for assembly, framing, and joinery when making furniture. The efficiency of the machine allows it to meet the production needs of the entire furniture manufacturing process.

03/

Packaging companies
Use a nail making machine to produce specialized packaging nails or staple guns for secure packaging. Consider small, fast, efficient machines because they have limited space.

04/

Home improvement retail
A nail making machine is used to produce various types of nails and sell them directly to retailers. The machine must have versatile nail-making capabilities to produce different types of nails to meet the retail market's diverse specifications.

05/

Automotive manufacturers
Use nail making machines to produce specialized automotive nails or fastening systems for vehicle assembly. Durability and precision are critical for automotive applications, so specialized machines are required in this scenario.

06/

Leather goods companies
Leather goods manufacturers use nail making machines to nail or fasten various leather goods, such as bags, shoes, and belts. These machines are small and fast, allowing precise and efficient production.



Nail Making Machine Safety Regulations



Before starting the nail making machine, always strictly observe the following protocols



Never put your fingers in the gap between the nail and the nail gun. Because the muzzle entry angle is extremely small, the operator's fingers are easily injured. When nailing, the impact of the nail needle is very strong, which will lead to cracking of the nail gun, which will make the nail deformed or clogged in the muzzle, so the gun muzzle is not allowed to put the fingers or foreign objects.


Ensure that the nail is nailed in the correct position. Before operating the machine, place the nail in the reed to ensure that the front of the nail is facing the place of operation. And test the nail gun for cracking by holding the muzzle in your hand for one - shot before operation.


Determine the distance between the impact hammer head and the workpiece. Nail making machine impact hammer head should be close to the surface of the workpiece to ensure stable, correct nail force. If the impact force is too light or too large, the nail will be easily dislodged or embedded in the workpiece.


Two hands should be used when operating the nail making machine. -Hold the nail gun with one hand and aim the target at the workpiece, and hold the machine with the other hand to control the balance and stability of the machine. Ensure that the nail strikes are vertical, and when encountering crash-proof items, adjust out the machine camber or other handling methods.


When stopping the machine, please turn off the machine in time. The nail making machine should be emptied of the remaining nails before shutting down to avoid machine failure. It is also necessary to store the machine in a dry and ventilated place to minimize damage and corrosion of the machine.



Packaging And Delivery



productcate-1-1



Our Certificates



productcate-1-1



Video



Partners



productcate-1-1



Client Feedback



productcate-1-1productcate-1-1productcate-1-1productcate-1-1productcate-1-1productcate-1-1productcate-1-1

FAQ

Q: What types of nail making machines do you offer?

A: We offer a wide range of nail making machines. Each type is engineered to meet specific production needs, with capacities ranging from thousands to tens of thousands of nails per hour, catering to various industrial applications.

Q: What are the main components of a nail making machine?

A: The nail-making machine mainly comprises a fuselage, motor, storage tank, automatic feeding device, stamping mechanism, positioning system, nail ejection device, waste nail processing device, etc. Nail-making machines will vary between different models and brands but generally include all the above elements.

Q: How does a nail making machine work?

A: Nail making machine is a continuous nail manufacturing process where in the galvanized wire passed into machine mould and nail cutter then hammer can shape in nail head and finished nail can automatically drop down.

Q: What types of nails can a nail making machine produce?

A: Generally, standard nail making machines can produce common wire nails used in everyday construction and carpentry. However, specialized nails, such as coil nails, roofing nails, U nails, or concrete nails, often require specific machines or additional equipment.

Q: What factors affect the quality of nails produced by the machine?

A: Factors such as the quality of the wire, the accuracy of the dies, and the machine's adjustment and maintenance.

Leveraging on advanced equipment and technology, Wandeshun is one of the leading nail making machine manufacturers and suppliers in China. Offering you the best quality, stable performance and competitive price, we welcome you to buy the common nail making machine, high speed nail making machine and automatic nail making machine made in China from our factory.

Persisting in 'High quality, Prompt Delivery, Competitive Price', we have established long-term cooperation with clients from both overseas and domestically and get new and old clients' high comments for wire drawing capstan, Pulley Dry Wire Drawing Machine, Straight Type Wire Drawing Machine. , automatic nail making machine , machine for making nail and screw , Automatic Nail Making Machines , high speed nail making machine , common nail making machine
