Aluminum Wire Drawing Process

luminum wire drawing process introduction AMD-450/13SP Aluminium rod breakdown machine with dual take-up was independent research and development product of our company.It is one of the best-selling machines since 2009. The machine has a compact structure, wire straightness easy to adjust, good...

Description

luminum wire drawing process introduction

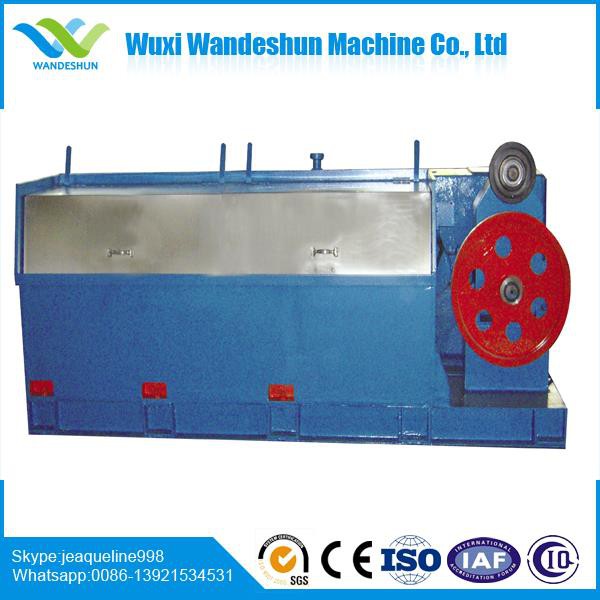

AMD-450/13SP Aluminium rod breakdown machine with dual take-up was independent research and development product of our company.It is one of the best-selling machines since 2009. The machine has a compact structure, wire straightness easy to adjust, good stability and many other advantages.


Technical parameters

Model SL-450/13SP wire drawing machine

1、Motor of drawing (kw) :90kw 4pole

2、Dia. of wire in (mm) :∅9.5

3、 Dia. of wire out (mm) :∅1.78-∅3.0

4、Max. drawing times :13

5、Max. speed (m/min): 900

6、Dia. of speed-fixing wheel (mm): ∅450

7、Lubricating and cooling mode: Spraying and semi-soaking

8、Case of host machine :Cast and weld

9、Case of gear :Cast

10、Case of water tank :Weld

11、Mode of transmission :Precision gear drive

12、Material of gear  :ZG 45 surface quenching

13、Material of shaft: Steel heat treatment

14、Bearing: LYC

15、Turret wheel :Surface quenching

16、Weight (kg) :4100

17、Overall dimension (mm) :4150×1600×1100


Intelligent dual take up SP-III

1、 Motor of take up (kw): 2×7.5

2 、Motor of small (kw): 0.75

3、 Mode of wire arranging: Iron rod arranging

4、 Mode of control :FC

5、 Diameter of disc (mm): Standard ∅400/∅500

6、 Weight (kg) :1800

7、 Overall dimension (mm) :2370×1500×1342


Quality control

1. Checking raw material before producing.

2. Checking one by one before the assebling

3. Checking one by one during the production

4. Have the random inspection before the delivery.


Testing standard

Salt Spray test :after 72hours ,no corrosion on surface

No damage on espag rod surface.

Espag rod over hauling and found:

After 25000times repeatedly opening and closing ,espag rod parts have no distortion ,no deformation and do not affect the normal use of espag rod.


Our Advantages

a. Extensive production experience: we are specialized in all kinds of wire drawing machine with an experience of 10 years.

b. Complete production facilities: owning precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.

c. High quality raw material: we mainly choose good supplier from big company, such as ABB , Siemens

d. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.

e. Short Delivery time: If one container 15-20 days.

g. Best after-sale service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.



FAQ

1. Q:How can i get to your factory?

A:Our factory is near WUXI Airport, we can pick you up in the airport.

2. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

3. Q:What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however, we can send you catalog, warmly welcome you to come visit our company.

4. Q:Which level of quality are your products?

A:We have got CE, ISO, SGS, TUV, SONCAP certificate so far.

5. Q:What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

6. Q:Can the machine be customized as our need, such as put on our logo?

A:Surely our machine can be customized as your need, Put on your logo is also available.

Our factory.jpgCustomers visit.png


Please feel free to send us your detailed requirements, you would be satisfied with our service.

Contact Below:

Wuxi Wandeshun Machine Co., Ltd

Add:Phase5, Shuofang Industrial Park, New Area, Wuxi, Jiangsu, China

Tel:86-510-85260990

Mobile:86-13921534531

       86-13806184032

       86-13915322227

Fax:86-510-85261990

Email:sales01@wxwds.com


Should you're in need of quality and stable aluminum wire drawing process made in China, welcome to buy the machine from our factory. We are one of the leading such manufacturers and suppliers in China, equipped with advanced equipment and technology. Welcome to contact us.
