Inverted Vertical Wire Drawing Machine for Making Bolts/screws/spring

Main Technical Parameters Reducer of the machine applies 8-moudule herringbone gear and the gear of inlet is 10-moudle with speed ratio of 1:1. Material for axis of high-speed gear is high-frequency quenching 40Cr. Tower wheel can be made from common cast steel 55#, common cast steel 55# with...

Description

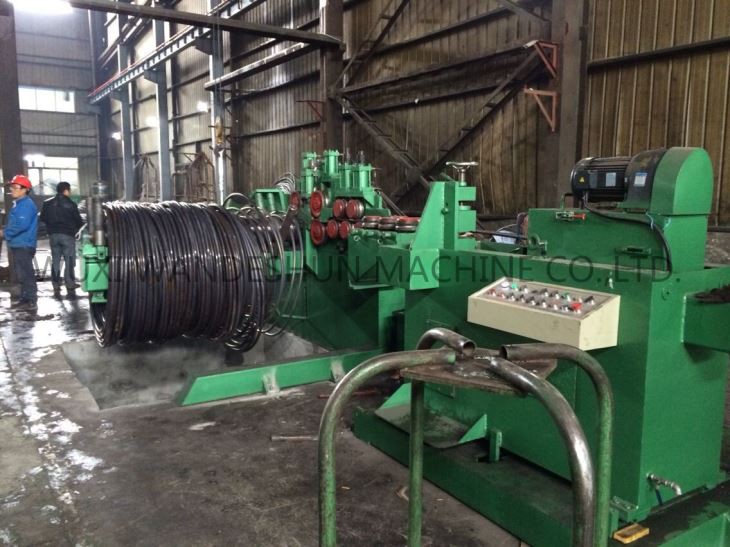

Our inverted wertical drawing machine at the production site of Changshu Standard Parts Plant

Main Technical Parameters

Items

Unit

Model

Diameter of capstan

mm

550- 1400

Maximum diameter of inlet wire

mm

40

Intensity of material

Mpa

≤1200

Compression rate

%

15-30

Maximum drawing speed

m/s

2.5

Motor power

kw

11-110


The product is developed for the non-slip drawing of medium & low carbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters.It is especially suitable for the drawing of medium & low carbon steel wire in standard parts and supermarket shelf industry.The maximum inlet diameter can reach 30mm and diameter of capstan is 550-1330mm.

Transmission part of the system can apply cycloidal speed reducer,harden gear surface reducer orrockerreducer.Its electric system applies international famous brand frequency converter with stable

performanc. Features of the equipment

1.It is applicable for continous production process of coil with heavy charging box.

2.Easy operation and reliable control enables safe production and convenient maintenance.

3.Application of 3-phase AC variable-frequency speed adjustment realizes smooth stepless speed regulation and saves more than 30% electric power.


Full automatic feeding+ automatic cutting+ inverted drawing machine production line  is the special equipment for the market by our company’s digestion and absorption of foreign advanced technology and design of heavy wire, large diameter drawing, simple and reliable operation, high safety. Unique high performance, humanization design is the preferred equipment drawing of low carbon wire rod, widely used in metal products, raw silk, bolt of large diameter wire drawing industry, deeply loved by industry experts and entrepreneurs who have farsightedness.



Characteristic instruction

★ the wire feeding with programmable frequency conversion control, makes the stability which linkage of wire drawing machine is very high, the design of multiple safety protection device for production safety equipment, so the equipment can be more stable operation, safe and reliable. Wire feeding process is fully automatic, without manual operation.

★ cutting mechanism of control is the same with the wire feeding machine, driven by hydraulic control, the operation is convenient and flexible, automatic cutting process, the cutting effect is excellent.。

★  the control of inverted drawing machine is safe operation mode, stop immediately for emergency shutdown, tangled lines, break and electrical faults, the brake system is safe and reliable, the operation is convenient and flexible, humanized design makes the whole line operation more convenient and reliable, the entire line of the main electrical components, hydraulic components are equipped with international famous brand products.

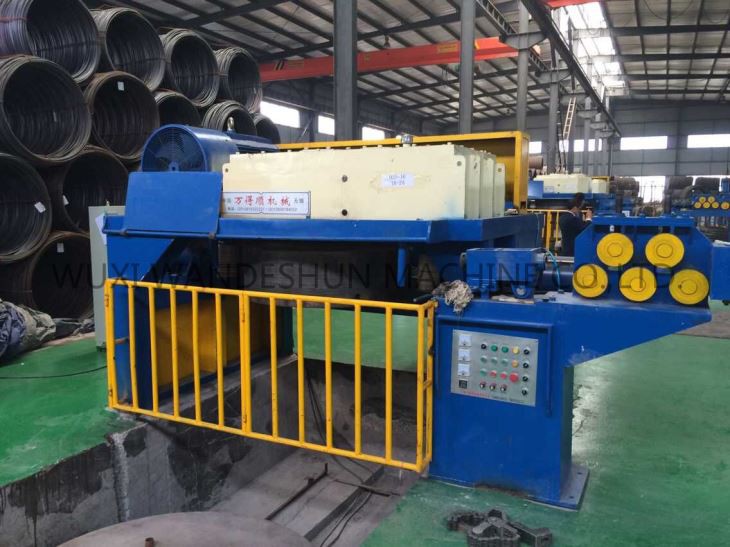

Automatic wire feeding part

Automatic cutting part

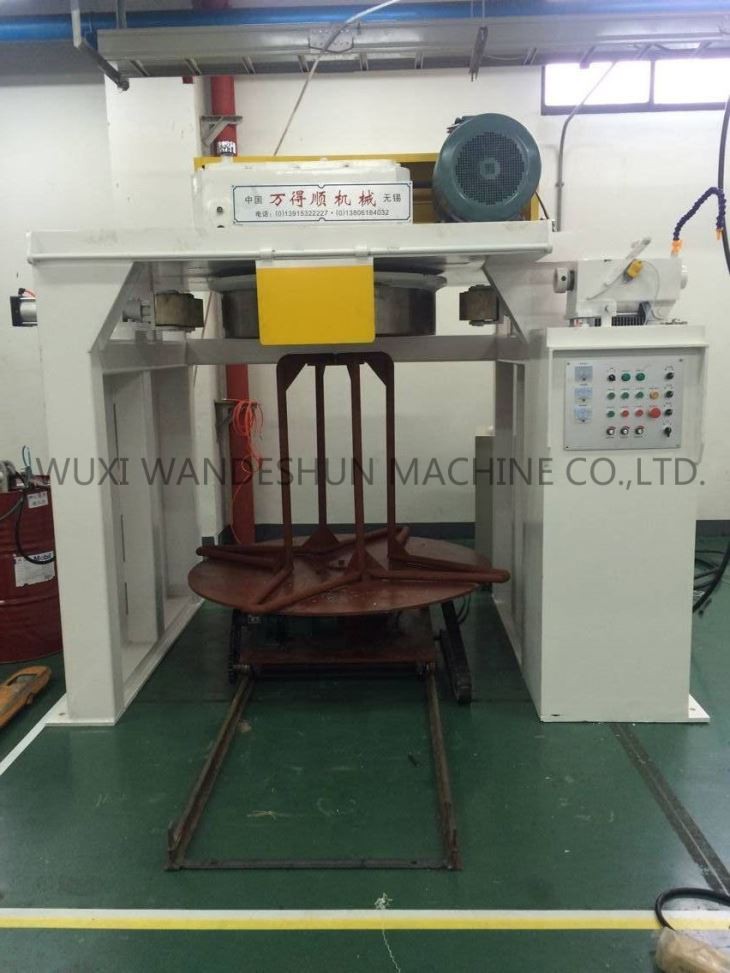

The inverted drawing part

name

unit

parameter

name

unit

parameter

name

unit

parameter

The active roller diameter

mm

Φ250

Cutting mode


Built-in rotary cutting

Drum diameter

mm

Φ550-1500

speed

m/min

≤50

Cutting process


automatic

The largest diameter line

mm

Φ38

Motor power

Kw

5.5-11

Motor power

Kw

0.75-1.1

Inline strength

Mpa

≤1200

Feeding style


Single action, linkage

The mobile form


Hydraulic, hand, automatic control

compression ratio

%

15-30

Press wheel form


Adjustable hydraulic control

gearbox


Cycloidal needle wheel

The max wire drawing speed

m/s

0.5-2.5

gearbox


Double gear drive

Cutting diameter

mm

Φ12-38

Motor power

Kw

22-110

Wire diameter

mm

Φ12-38

Cutting material strength

Mpa

≤1000

Control mode


AC variable frequency speed regulation

Material strength

Mpa

≤1000

Control mode


PLCcontrol

Reduction box


Hardened face gear drive

Control mode


PLC control







Our workshop.jpg


Should you're in need of quality and stable inverted vertical wire drawing machine for making bolts/screws/spring made in China, welcome to buy the machine from our factory. We are one of the leading such manufacturers and suppliers in China, equipped with advanced equipment and technology. Welcome to contact us.
