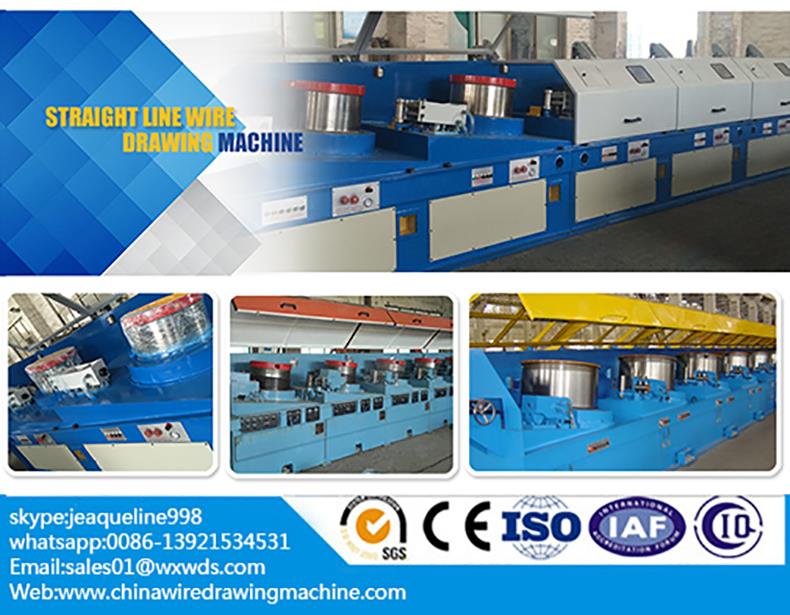

Straight line type continuous wire drawing machine detail
LT9-450Copper Large Pull with continuous annealing production line
copper rod breakdown machine;rod breakdown machine;8mm copper rod dawing machine
From 8mm to 1.78mm—3.30mm
copper rod input diameter:8mm,
output diameter: 1.78mm—3.30mm
production speed:480meters/s production capacity: 1200KG/hour
copper rod breakdown wire drawing machine (450/LT9)
number of dies:9
installed capacity:125KVA (Main motor:AC.110KW,spooler motor:15KW)
drive: frequency inverters
Dimension length 3000 * 1800mm Weight 6.5T width
This company produces LT9-450 continuous annealing line used with pull-plus double-disc received Continuous Annealing Line (or, as the nose unloading line) production model, the formation of the entire production line continuous operation, drawing machine from a copper rod into the line of direct pull 8.00mm Model copper wire.
Annealing mode DC-annealing, annealing the use of advanced low-voltage power supply high current power supply, the control system adopts microcomputer intelligent control, equipment operation more stable, the maximum speed of 8 m / sec.
Product Specifications
Wire drawing bench | |||
parameters | 350water tank wire drawing | 450water tank wire drawing | |
Inlet diameter | Φ3 mm | Φ8mm | |
Outlet diameter | Φ0.8－Φ2.8 mm | Φ2.2－Φ3.3mm | |
Drawing speed | 400m/min | 380m/min | |
Main motor power | AC 22Kw－37Kw | DC 110Kw－160Kw | |
Take-up machine power | Torque motor 20A 6P | Torque motor 25A 6P | |
weight | 1000Kg | 6000Kg | |
Annealing machine | |||
parameters | TH－800 | TH－1200 | |
Annealing wire diameter range | 0.8－2.8mm | 2.2－3.3mm | |
maximum speed | 380m/min （Φ2.0mm） | 360m/min (Φ2.5mm) | |
Annealing current | 1500A | 2000A | |
Annealing voltage | 50V | 50V | |
Annealing capacity | 60KVA | 100KVA | |
Shape size | 1500×750×2000 | 1600×750×2000 | |
weight | 2500Kg | 2800Kg | |

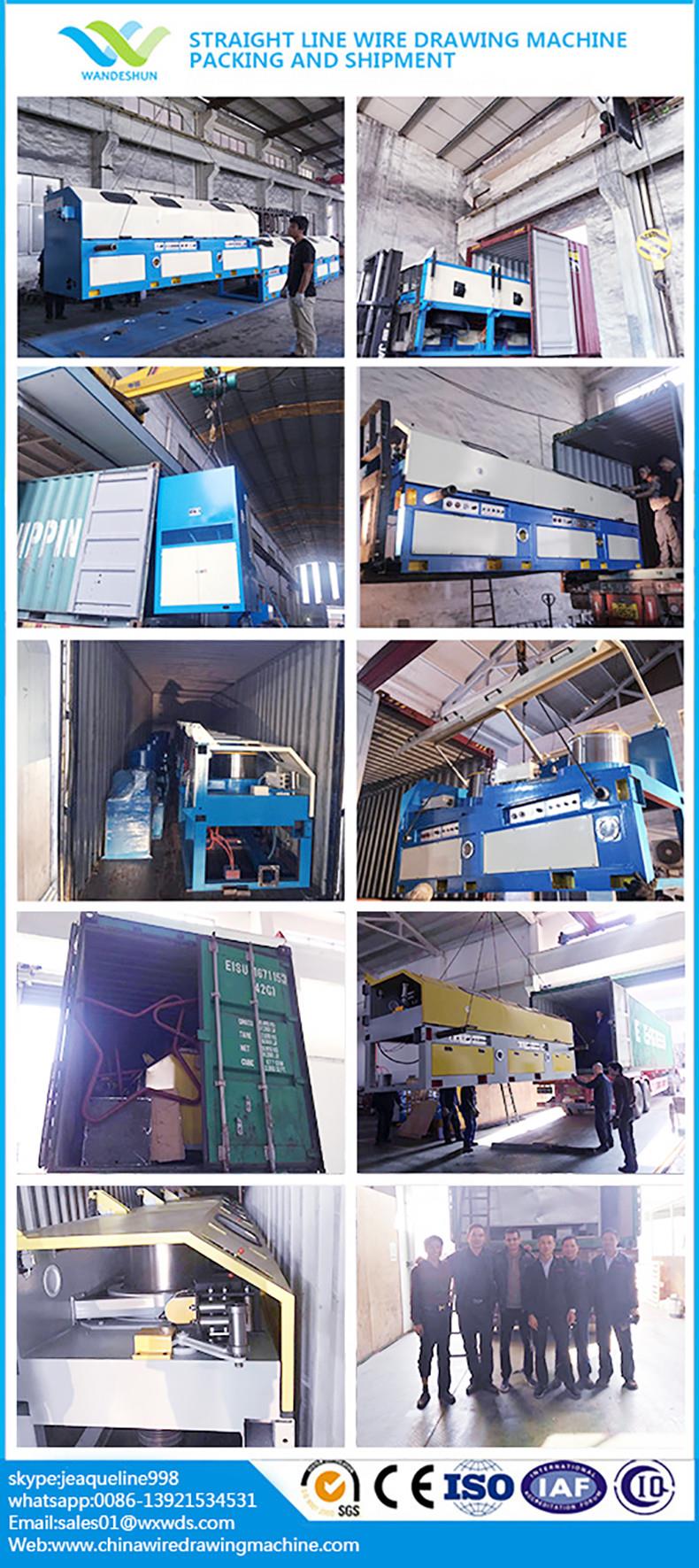

Packaging & Delivery
Packaging DetailsFCL, water-proof, good securing/protecting for long voyage
Delivery TimeAbout 2 months after 30% deposit
Should you're in need of quality and stable straight line wire drawing machine/copper and aluminium wire drawing machine and accessory machine made in China, welcome to buy the machine from our factory. We are one of the leading such manufacturers and suppliers in China, equipped with advanced equipment and technology. Welcome to contact us.
