The company has established a complete marketing service system, relying on outstanding advantages in talents, technology, resources, information, etc., to provide high-quality and market-competitive products of welding wire drawing machine, low carbon steel wire drawing machine, copper wire bunching machine. For customers' various problems in product purchase and use, we can provide timely and effective pre-sales, in-sales and after-sales services to maximize customer utility and satisfaction. We take the standard business operation procedure and the extremely competitive price to produce the satisfied product for you. Our goal is to develop more reliable and trustworthy products for customers, and contribute our own strength to the technological progress of the industry. Facing the increasingly fierce market competition and the severe test of global economic integration, we will always adhere to the corporate policy of "all-round adapting to and satisfying the market".
This company produces the ZX series automatic horizontal (trunk)-type discharge wire machine, for high, medium and low carbon steel wire, copper wire, aluminum wire and other wire tensile strength of the lower tape unloaded heavy line, the main supporting straight, pulley type continuous wire drawing machine used to make the drawing, a continuous discharge line of work carried out. Machine Features: AC variable frequency control, balancing quality, speed, fixed with wire drawing machine, tape re-save man.
If the device receive high tensile steel to increase a calibration mode, which increases the smoothness of the wire straightening. The unloading line using water + air-cooled machine reel, the calibration module uses the water, greatly improved the quality of steel products.
Technical Parameters
| Items | Units | Name |
ZXA300-600 | ||
Take-up reel diameter | mm | Φ300-600 |
Income(unloading)in diameter | mm | Φ1.0-4.0 |
Income(unloading)line speed | m/min | Set with the user |
Income(unloading)line intensity | Mpa | 1000~2600 |
Motor power | Kw | 11~45 |
Dimensions | mm | 1500×1550×2350 |
Weight | t | 2.5 |
Spool discharging machine SG series developed, designed and manufactured by our. Is applicable for LZ straight line, LT wet, LW slip drawing machines. Features: common V band or narrow V band transmission, moment motor or variable-frequency motor, polished rod or silk rod array, manual or electric lockup, spool ascending via rotation of conical sharpening or automatically via electrics.
Note: Speed and tightening facility are available upon customers' requirements.
Technical Parameters
| Model | Specifications |
Take-diameter | 1-5mm |
Closing speed | 0-600m/min |
Cable way | Wire rod/screw cable |
Wire spacing | 0.01-40mm |
Cable thrust | 70kg |
Employment with the word wheel(coil) size | A630 B800 C1150 |
Max weight collection line | A500kg B800kg C1000kg |
Should you're in need of quality and stable the size for the trunk/spool take up machine made in China, welcome to buy the machine from our factory. We are one of the leading such manufacturers and suppliers in China, equipped with advanced equipment and technology. Welcome to contact us.
Our Customer

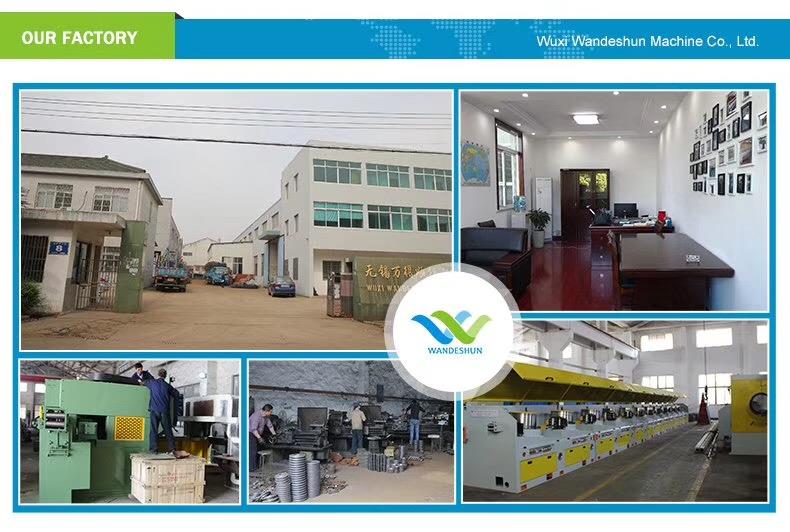

Our Factory
'Products are better, not the best.' This is the slogan of our quality department. At present, the Dead Block Machine/Takeup Machine for Carbon Steel Wire have been sold all over the world, deeply trusted by merchants and consumers at home and abroad and won a good reputation. We stick to the concept of 'relying on science and technology, living on quality, serving with guarantee, aiming to satisfy customers, develop by innovation'. We pioneered the industry's one-stop service, adhering to the core philosophy of taking customer value as the foundation.
Hot Tags: the size for the trunk/spool take up machine, China, manufacturers, suppliers, factory, made in China, zinc alloy wire drawing machine, low carbon wire drawing machines, binding wire drawing machine, wire Draw Line, trolley wire drawing machine, carbon wire drawing machines
